RF20-GUI Cabinet

RF20-GUI is the control cabinet form of RF20 control valve. The cabinet body is carbon steel, which can be made of brushed stainless steel material, the basic model of controller is LCD, it can be touch screen also.

Basic model£ºLCD

Strainless steel¡¢Touch screen

Corbon steel¡¢Touch screen



touch screen



Specialization Parameter

Model

RF20-GUI-10

RF20-GUI-15

RF20-GUI-20
RF20-GUI-25

Rated amount of water produced(t/h)
10
15
20
25

Length*width*height£¨mm£©

470*410*1400
IN & OUT
1.5"
2"
Solenoid valve
DF40-1 DF50-1
Water distributor
BSQ-S4-50-40 BSQ-S4-50-60 BSQ-S4-50-100 BSQ-S4-50-120

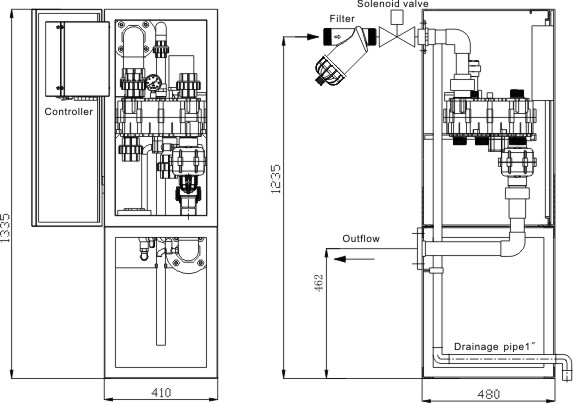

Install
