(1)

1PGR2、GR2-2BLCD Hourshlod softenner valve

Flow rate:2-3t/h

1PGR2

GR2-2BLCD

1PGR2 、GR2-2BLCD is suitable for home background of soft water machine control valve products, inflow meter full flow control, in and out of the nozzle connection socket type, adapted to the bypass valve inflow water connection way access to the personalized design configuration, liquid crystal display switch in both Chinese and English, also can adapt to the programming of personalized display, external with DC12V power supply only adapter.small size, compact structure,It conten can be set multiple mode relay output control, 485 comunication interface.safety and reliability.

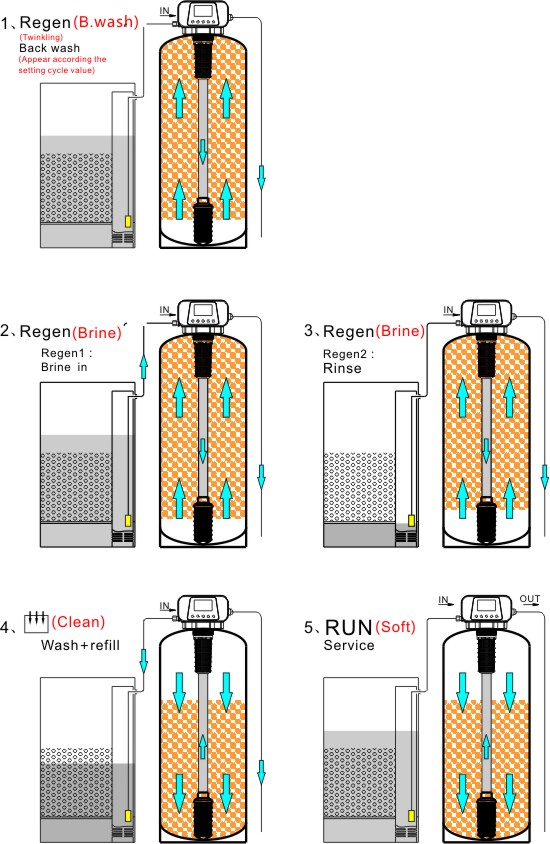

Control process

flow rate pressure curve

parameter setting

LCD

Discription

Formula

B.wash

Backwash:liter

Resin filling volume (L) x 100%

Brine

Brine to Rinse：Liter

Resin filling volume (L) x 250%（S.wash:185%+Absorb::40%)

Clean

Wash+Refill：Liter

Resin filling volume (L) x 270%（Wash:230%+Refill:40%)

Soft

Softening：Ton

[Resin filling volume (L)x90%] ÷ Raw water hardness (mmol/L)

GR2-2BLCD integral model

VALVE BODY SIZE

BYPASS VALVE CONNECTED

1PGR2、GR2-2BLCD Manual download（PDF)

(2)

1PGL2、GL2-2BLCD Filter valve

Flow rate ：2-3T/H

1PGL2 \GL2-2BLCD is suitable for home background of Purify machine fliter valve products, inflow meter full flow control, in and out of the nozzle connection socket type, adapted to the bypass valve inflow water connection way access to the personalized design configuration, liquid crystal display switch in both Chinese and English, also can adapt to the programming of personalized display, external with DC12V power supply only adapter.small size, compact structure,It conten can be set multiple mode relay output control, 485 comunication interface.safety and reliability.

GL2-2BLCD Integral model

VALVE BODY SIZE

BYPASS VALVE CONNECTED

1PGL2 Seperate Unit model

VALVE BODY SIZE

BYPASS VALVE CONNECTED

1PGL2、GL2-2BLCD MANUAL DOWNLOAD（PDF)
