GR-2D series Downflow regeneration control valve is an improved version of the GR-2 with a modified lower valve design, achieving the widely used downflow regeneration control valve in the market. It avoids the strict requirements for resin breakage rate in upflow regeneration and the phenomenon of incomplete salt absorption or even backwashing. The salt tank water Refill is carried out in parallel with the B.wash process. Dry salt tank control valve.

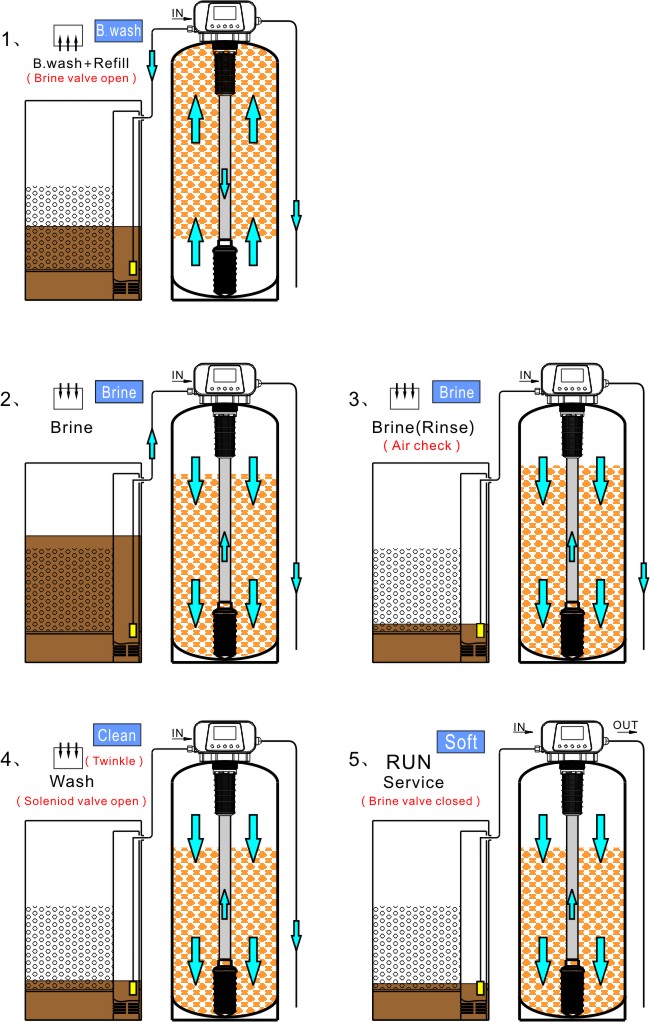

flow process
characteristic
1. Small valve body but large flow rate;
2. Water inlet flow meter, full meter control , power failure and water stop memory,It can be channged to Time mode;
3. Can be set the delayed regeneration;
4. Multi-valve interlock communication, multi-mode output extension,external control input interface;
parameter setting

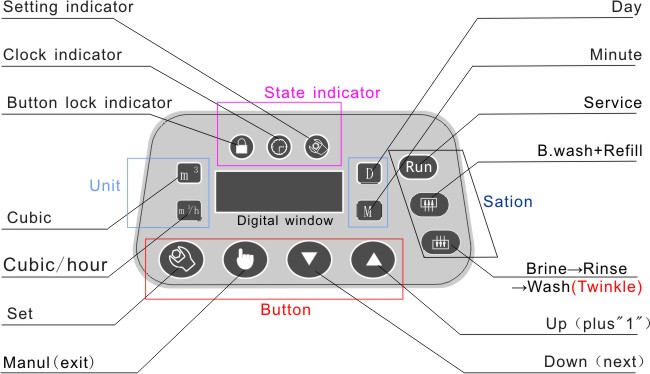

LED

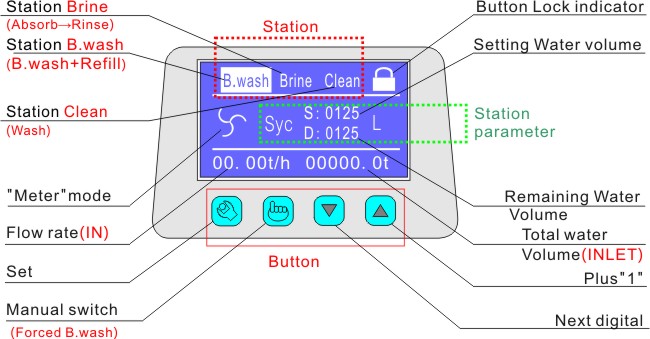

LCD
Discription
Formula
B.wash
B.wash+Refill
Resin filling volume (L) x 250%(200%+50%)
Brine
Brine to Rinse：Liter
Resin filling volume (L) x 250%(50%+200%)
Clean
Wash+Refill：Liter
Resin filling volume (L) x 100%
Soft
Softening：Ton
[Resin filling volume (L)x90%] ÷ Raw water hardness (mmol/L)
